scikit-learn 最小二乗法

scikit-learnで最小二乗法

y=sin(x)に誤差をランダムで付加した100個のデータを準備し、
学習用:テスト用=8:2に分けて実行。


import numpy as np
import matplotlib.pyplot as plt
#sklearn.cross_validationは非推奨、次のヴァージョンで廃止予定
#sklearn.model_selectionへ移動
from sklearn.model_selection import train_test_split as tts

from sklearn.linear_model import LinearRegression
from sklearn.preprocessing import PolynomialFeatures
from sklearn.pipeline import make_pipeline

from sklearn.metrics import mean_squared_error as mse

# y=sin(x)に誤差を付加したデータを作る
data_size = 100    # サンプル数
x_orig = np.linspace(0, 1, data_size)

def f(x):
    return np.sin(2 * np.pi * x)

x = np.random.rand(data_size)[:, np.newaxis]
y = f(x) + np.random.rand(data_size)[:, np.newaxis] - 0.5
x_train, x_test, y_train, y_test = tts(x, y, test_size=0.8)

plt.plot(x_orig, f(x_orig), ":")
plt.scatter(x_train, y_train)
plt.xlim( (0, 1) )

f:id:rare_Remrin:20170528230031p:plain

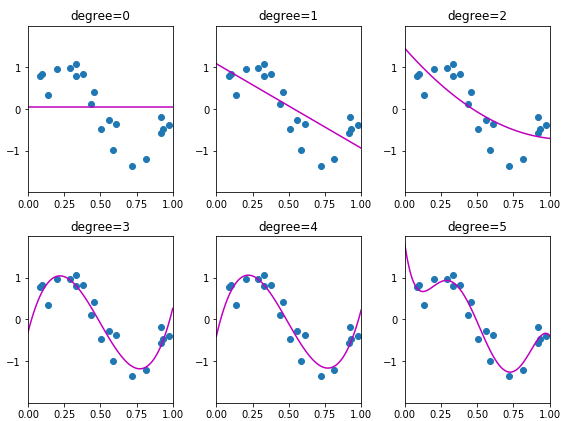

# 最小二乗法の次数を変えたサブプロットを描画
row, column = 2, 3    # サブプロットの行数、列数
fig, axs = plt.subplots(row, column, figsize=(8, 6))
for deg, ax in enumerate(axs.ravel()):
    # パイプラインを作る
    e = make_pipeline(PolynomialFeatures(deg), LinearRegression())
    # 学習
    e.fit(x_train, y_train)
    # 予測
    px = e.predict(x_orig[:, np.newaxis])

    ax.scatter(x_train, y_train)
    ax.plot(x_orig, px, "m")
    ax.set(xlim=(0, 1), ylim=(-2, 2), yticks=([-1, 0, 1]),
           title="degree={}".format(deg))

plt.tight_layout()
plt.show()

f:id:rare_Remrin:20170528230045p:plain

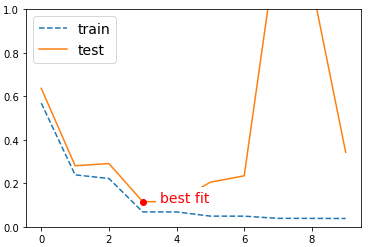

train_error = np.empty(10)
test_error = np.empty(10)

# 最適な次数を探す
for deg in range(10):
    # 学習と予測
    e = make_pipeline(PolynomialFeatures(deg), LinearRegression())
    e.fit(x_train, y_train)
    # 誤差の評価
    train_error[deg] = mse(y_train, e.predict(x_train))
    test_error[deg] = mse(y_test, e.predict(x_test))

plt.plot(np.arange(10), train_error, "--", label="train")
plt.plot(np.arange(10), test_error, label="test")
# 最適次数を表示
plt.plot(test_error.argmin(), test_error.min(), "ro")
plt.text(test_error.argmin()+0.5, test_error.min(),
         "best fit", color="r", backgroundcolor="w",
         fontsize=14)

plt.ylim( (0, 1) )
plt.legend(fontsize=14)
plt.show()

f:id:rare_Remrin:20170528230106p:plain

3次関数での近似が良さそう。
選んだ関数がsinなのでなんとなくうなづける。
今回のデータサイズだと、3~6次は大差なさそう。
乱数の初期値(seed)がかわると、4次や5次が最適となることもあった。
ただ、7次以上は学習用データで過学習をしてしまい、
テスト時の誤差が非常に大きくなることも。

最後のグラフのブルーのtrainは、多項式近似のため右肩下がりのはず。

参考:
みんなのpython 第4版
