バーンスレイのシダ
○バーンスレイのシダ
4種類の変換をそれぞれ、85%、7%、7%、1%の確率で選んでいきます。
# -*- coding: utf-8 -*- import numpy as np import matplotlib.pyplot as plt def transform1(p): x, y = p[0], p[1] x1 = 0.85*x + 0.04*y y1 = -0.04*x + 0.85*y + 1.6 return x1, y1 def transform2(p): x, y = p[0], p[1] x1 = 0.2*x - 0.26*y y1 = 0.23*x + 0.22*y + 1.6 return x1, y1 def transform3(p): x, y = p[0], p[1] x1 = -0.15*x + 0.28*y y1 = 0.26*x + 0.24*y + 0.44 return x1, y1 def transform4(p): y = p[1] x1 = 0 y1 = 0.16*y return x1, y1 def transform(p): transforms =[transform1, transform2, transform3, transform4] # 0~3の中から、85%, 7%, 7%, 1%の重みでインデックスを選ぶ index = np.random.choice([0, 1, 2, 3], p=probability) t = transforms[index] x, y = t(p) return x, y def draw(n): x, y = [0], [0] # x、yはn個の要素を持つリストになる x1, y1 = 0, 0 # 現在の座標 for i in range(n): x1, y1 = transform((x1, y1)) x.append(x1) y.append(y1) return x, y n = 1000 # 点の数 # 85%, 7%, 7%, 1% probability = [0.85, 0.07, 0.07, 0.01] # 合計が1.00 x, y = draw(n) plt.plot(x, y, "o", c="g", markeredgecolor="darkgreen") plt.title("Fern with {} points".format(n)) plt.show()

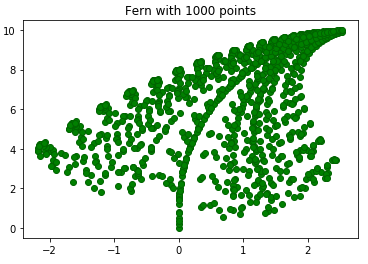

n=1000として、1000個の点で描いたシダ

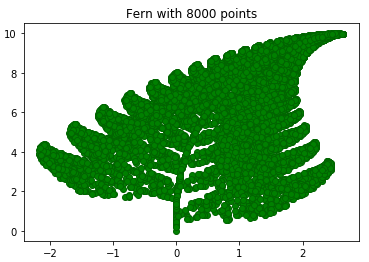

n=8000として、8000個の点で描いたシダ
参考:
Pythonからはじめる数学入門 Amit Saha
